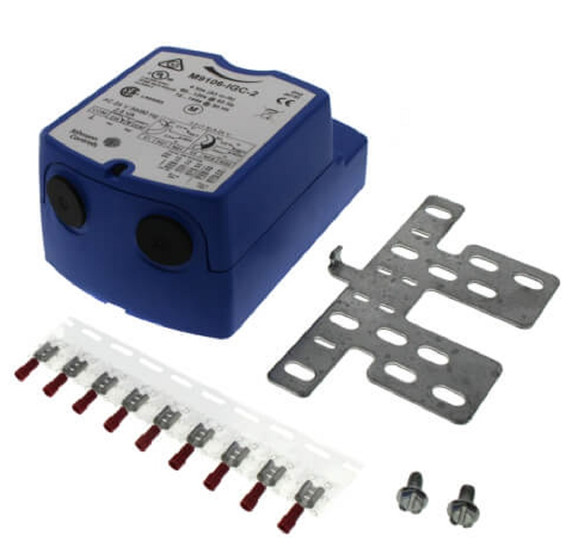

Johnson Controls M9106-IGC-2 24 VAC Non-Spring Return, Rotary Actuator 53 lb-in
24 VAC Non-Spring Return, On-Off-Floating Rotary Actuator with 2 auxiliary switches (53 lb-in)
Features:
Simple direct coupling reduces installation and commissioning time and improves reliability by eliminating damper linkages. Single screw coupling provides three-point shaft gripping
Designed for zone damper and ball valve actuator applications
Small, compact design - allows installation in tight-fitting locations
Rotation range adjustable 30 to 90 degrees CW or CCW
Fits 3/8 to 1/2" (10 to 13 mm) round or 3/8" (10 mm) square shaft
On-off, floating and jumper selectable DC 0(2).10 V or DC 0(4).20 mA proportional control
Jumper selectable DA / RA operation
60 second running time at 60 Hz
Long life brushless synchronous drive motor technology - provides constant running time independent of load
Robust 53 lb-in (6 Nm) torque rating
Whisper quiet 35 dBA noise rating
clutch - provides over torque protection over the entire range of rotation
2-SPDT optional auxiliary switches
-4 to 125°F (-20 to 52°C) ambient temperature rating
100,000 full stroke cycle, 2,500,000 reposition rating
Manual gear release simplifies setup and field adjustments
1/2" NPT threaded conduit opening meets electrical code requirements and allows the use of flexible armored cable
Position feedback (GGX models) provides simple, closed-loop control with accurate position sensing
Adjustable rotation stops allow application versatility with 30 to 90° clockwise or counterclockwise rotation
UL Listed, CSA Certified, CE Mark - Johnson Controls - Johnson Controls - M9106-IGC-2 - M9106-IGC-2
